TECHNICAL SPECIFICATION
| TECHNICAL SPECIFICATION | |
|---|---|
| Pin Distance | 11 mm |
| Nominal Voltage | |
| AC | Max.250V |
| DC | Max.300V |
| Nominal Current | 06A |
| Contact Resistance | 4 m Ohms |
| Body Material | PA (+G) |
| Adapting Plug | Industrial Form |
| Gasket Material (Opt.) | Operating Temp. |
| Nitrile/TPE | -40oC + 90oC |
| Silicon | -40oC + 125oC |
| Product Weight | 0700 gm |

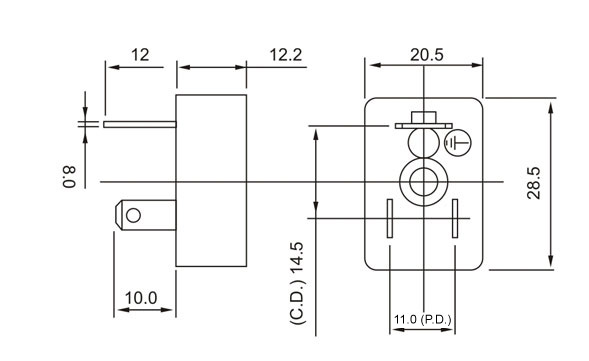

TECHNICAL DIAGRAM
